AVI PRECISION ENGINEERING PTE LTD

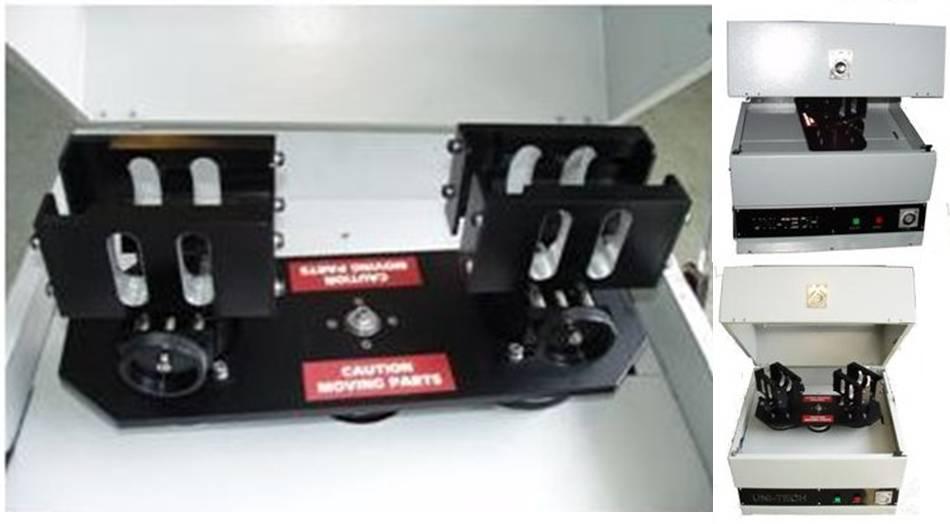

Unlike hand mixing, the AVI-SPI Solder Paste Softeneris a non-contaminating mixer, which utilizes pseudo planetary motion to stir the solder paste. The SPI provides uniform paste consistency regardless of operator skill. The paste temperature rises due to friction, enabling control over the solder paste viscosity. Now solder paste can be pulled from the refrigerator and ready on the stencil, in less than 15 minutes!The SPI employs a pseudo-planetary motion whereas the solder paste container rotates slowly at the end of an arm, which spins rapidly. The resulting centrifuge force causes the solder paste within the container to repeatedly fold over itself, thereby mixing and softening itself.
Features and Benefits:
From refrigerator to screen printer in less than 15 minutes. Centrifuge is self-balancing and has an off-balance safety detector. Uses airtight containers so oxidation and humidity are no longera concern. Automated operation assures gentile softening, and unlike hand mixing, provides even consistency.
| Category | |
| Specifications | |
| CapacityAccommodate | 2 jars of solder paste (500 / 250 / 125g) |
| General Number of Rotations | 400-rpm revolution, 100-rpm rotation (50Hz) |
| Timer | 0 - 60 minute |
| Paste temperature rise | 0 to 25 C in 15 minutes |
| Safety Interlock door | Door Lock during spinning |
| Dimension (L x W x H) | 465 (W) x 445 (D) x 425 (H) mm |
| Weight | 35 Kg |
| Power | 220VAC/ Single PhaseFeatures |
Download Catalogue(PDF):
| File Name | File Size | Date Modified | |
 |
AVI - Solder Paste Softener (SP-0401).pdf | 570,468 KB | 2007-11-14 19:48:04 |
|
GAM 60 High Speed Cream Solder Mixer.PDF | 321,764 KB | 2008-03-11 02:16:59 |
|
GAM 62 Centrefuge Machine.pdf | 112,712 KB | 2008-03-11 02:16:59 |
|
GAM 62A Hispeed Centreifuge Machine.pdf | 175,832 KB | 2008-03-11 02:16:59 |
|
Malcom - Solder Paste Softener.pdf | 52,479 KB | 2007-05-08 04:52:12 |
|
Pic - Solder Paste Spinner.pdf | 186,880 KB | 2007-05-08 04:52:29 |
|
Pic - Stapula Nylon.pdf | 32,847 KB | 2007-05-08 04:52:33 |
|
UDK - DY-10 Epoxy Mixer.pdf | 133,636 KB | 2007-05-08 04:52:42 |
|
UDK - DY-16 Solder Mixer.pdf | 118,344 KB | 2007-05-08 04:52:49 |
